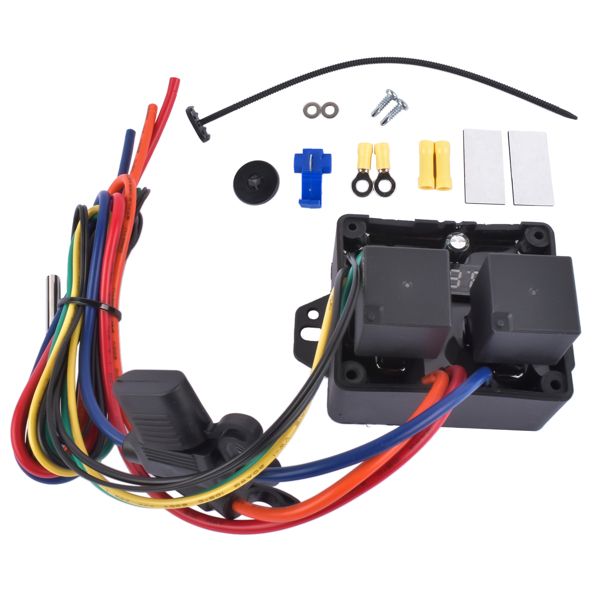

Fan switch kit can be used in 12 or 24 volt applications
I.OEM Part Number
0444
DC-0444
II.Specification
Speed: Single speed, 10 second delay to start up the second fan
Relay setup: Dual relay
Speed: Single speed, 10 second delay to start up the second fan
Applications: Suitable for single and dual fan applications
Screen Display: LED digital temp display, actual temp + set temp
Temp Display: Centigrade or Fahrenheit
Temp settings: 40°c to 110°c (104°F to 230°F)
Temp setting: Push Button
III.Application
1)Air Tempreture Application
The Temperature Sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, It senses air temperature as it passes through the radiator and has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF).
2)Water / Coolant Application
The 0444 sensor can also be placed directly into the coolant system and no need to cut hoses. You will need to use a Temperature Sensor Adaptor Kit (Part 0409) to assist with this type of fitment. It is recommended to install the sensor in the return hose from the radiator.
IV. Fit for
Land Rover Range Rover 1979-2012
Ford F-350 1996-2003
Ford Mondeo 1995-2000
Honda Accord 1981-1985
Honda Civic 1985-1987
Holden Gemini 1981-1984
Toyota Hilux 1979-1982
Toyota Corona 1982
Mazda 929 1987-1991
Mercedes Benz 124 1986-1990
Suzuki Swift 1986-1988
Nissan Patrol 1986-1987
Chrysler Valiant 1981
Toyota Hilux 1979-1982
Package Included: Fan switch kit
