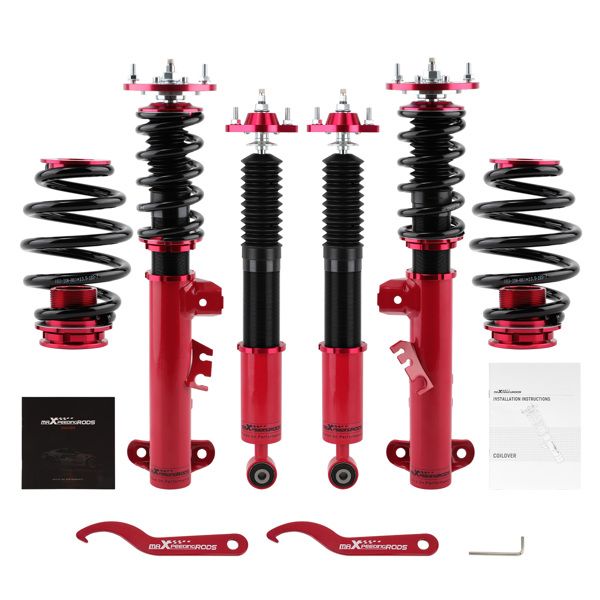

24 Ways Damper Coilover Kit For BMW E36 318 325 328 M3 1991-1999 Coilovers Strut Coil Springs 59634683

Feature

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3. Twin-Tube structure allows sufficient stroke within the shock absorber

4. Separate height adjustment does not affect damper stroke

5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.

6. Height Adjustment tools included

7. Camber plate top mounts help to eliminate the need for a separate camber kit

8. Pillow ball top mount - It improves the steering feel and response

9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

10. Full rebuildable

Application

For BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; (09/1990-12/1998)

For BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 323is; 325i; 328i; 328is(09/1991-04/1999)

For BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; (03/1993-04/1999)

For BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)

For BMW Z3 (E36) Coupe & Roadster 1996-2002

Chassis Number: E36 ( For E36 chassis only)

Notice: M3 base model for coupe; sedan and convertible 1992-1999

Specifications

- Top mounts: pillow ball top mounts with camber plate

- Damping: 24 levels rebound damping adjustable

- Adjustable height: Yes. lowering 1-3inch

- Spring rate Front: 8 kg/mm (448 lbs/in)

- Spring rate Rear: 7 kg/mm (392 lbs/in)

- Spring length Front: 180mm

- Spring length Rear: 183mm

- Coilover overall length Front: 560mm-683mm

- Coilover overall length Rear: 520mm-615mm

- Shock type: Twin tube

- Spring Preload: 7-10 mm

- Color: Red

Package included

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

1 x Pair of wrenches for height adjustment
