Application:
1994-2001 for Dodge Ram 1500 4x4 4WD ONLY
1994-2002 for Dodge RAM 2500 4X4 4WD ONLY
1994-2002 for Dodge RAM 3500 4X4 4WD ONLY
Selling Points:
-Increased off-road capability
-Elimination of the death wobble
-Lifted Jeeps are recommended to have adjustable track bars
-Reduce rollover risk
-Center your axle
Specification:
Length Adjustabe Range:Accommodates 0''-4'' of Vehicle Lift
Ride Height: 0"- 4" Lift
Item Weight : 7.82kg
Package dimension: 99*16*16c
Material of the Joints: alloy
Rodthickness:φ35 Rod Length:870mm
Warranty: 2 Year for any manufacturing defect
Description:
Powder coated gloss black for a brilliant and durable finish.
Adjustable Heavy Duty Carbon Steel Track (Panhard) Bar* and Relocator Bracket
Tubular Design with Self-Lubricating Bushings for Easy Maintenance; Stability Strength.
Relocator Bracket also made from Heavy Duty Carbon Steel.
Ensures Proper Axle Location Performance with Track Bar Relocator Bracket
Reduces; in most cases eliminates; "Death Wobble" (Axle Shake)
Most Drivers experience an Increase of Steering Comfort
Compatible with most aftermarket lift kits**
Feature:
100% brand new in box
Easy 100% bolt in installation with the use of basic hand tools. No cutting or welding is required.
Adjustable: Accommodates from 0''-4'' of Vehicle Lift
Tubular Design with Self-Lubricating Bushings for Easy Maintenance; Stability Strength.
Installation instructions:
1.Remove stock track bar. Using an socket remove the passenger's side bolt
On the driver's side mount you will need to remove the cotter pin. Then using a wrench; loosen and remove the castle nut.Finally using a joint fork pry the track bar away from the frame mount.
2.You should be able to remove the track bar now. Using a bristle brush; clean out the inside of the driver's side track bar mount. As well; clean the lower face around the hole.Clean the outside frame rail where the retrofit bracket will mount.
3.Align the support brackets and take the fork of the pan-har rod as a reference. Be careful not to make the right or wrong direction. Install the nuts one by one and tighten them.
4.Locate the existing hole justbelow the ground strap. Drill bitand thru drill this hole tothrough the other side of theframe.
The drill hole must be level. Once through; deburr the exithole. Mounting nut
5.Fix the brake line.
6.Adjust the track bar to a suitable length; and fix the nut.

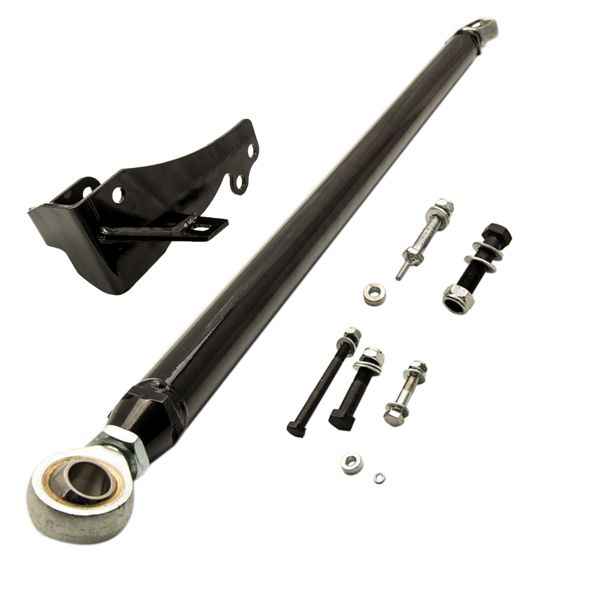

Package Includes:
1x Heavy Duty Carbon SteelAdjustable Track bar
1x Bracket (6mm thickness)
5x Bolts (1xCombination bolt \4xHexagon head bolts)
Several gaskets
you will get what the picture shows
Notice:
California Prop 65 Warning
Code:MXR02FXSY
