Item Specifics
|
Part Name: High Pressure Vortex Fan
Color: Silver
Material: Aluminum alloy

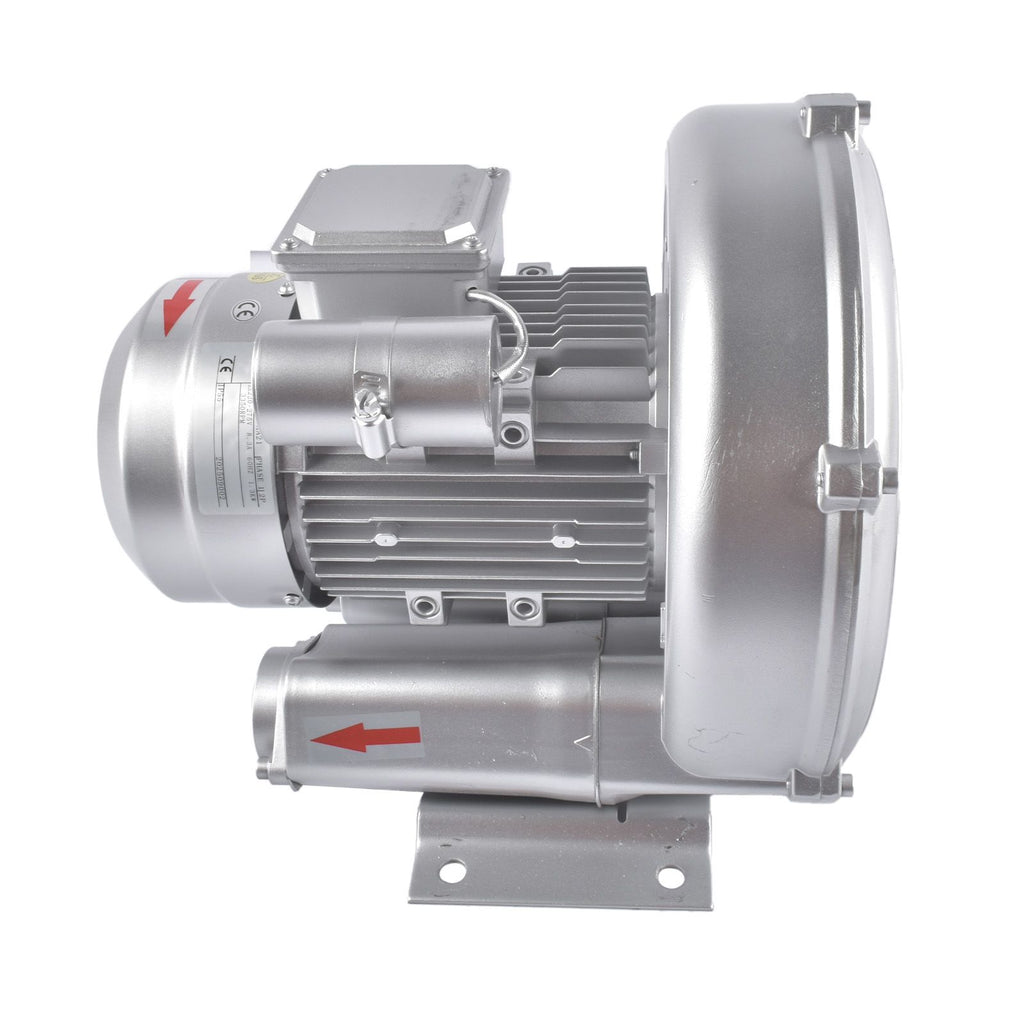

Model: GHBH 1D7 12 1R4 Regenerative Blower
Work Style: 1Phase (Single Phase / Single Stage Blower)
Function: Drying
Power Source Type: Electric
Power: 1.75 Hp / 1.3 kw
Air Flow: 103 (CFM) / 175 (m3h)
Vacuum: 72 (inches H2O) / 180 (mBar)
Pressure: 76 (inches H2O) / 190 (mBar)
Inlet / Discharge: 1-1/2"
Rated frequency: 60Hz
Sound: 64 Db
Voltage: 220V
Current: 8.3 Amps
RPM: 3450
|
|
Item Details
- For pumping and vacuum applications
- Protection rating: IP55. Insulation class: F
- High-quality blower delivering powerful airflow
- Low-noise operation, oil-free design, maintenance-free
- Stable pressure and airflow ensure efficient system performance
- Excellent high-temperature capability, withstands temperatures up to 130°C
- Vibration-damping design combined with dynamic balancing technology effectively minimises vibration impact
Multi-Scenario Application
- Air-knife drying
- Food processin
- Timber industry
- Textile industry
- Beverage industry
- Pharmaceutical industry
- Plastic and rubber industry
- Pneumatic conveying systems
- Wastewater treatment systems
- Packaging and printing equipment
- Hospital and laboratory equipment
- Vacuum lifting and clamping systems
Product Features
- Easy to Operate: This product is easy to install and simple to operate.
- Powerful Motor: Incorporating a high-power motor core and precision bearings, this ensures the high-pressure cyclone blower operates smoothly and efficiently, driving the rotor to high-speed rotation. This design effectively saves time, enhances operational efficiency, and contributes to environmental protection.
- Dust-proof Ventilation: Dust filters fitted to the inlet and outlet ports effectively filter impurities and precisely direct airflow to target areas, achieving optimal ventilation performance.
- Robust Durability: Manufactured from high-grade materials through precision engineering, the centrifugal fan guarantees efficient operation and exceptional longevity.
- User-Friendly Design: Featuring a near-maintenance-free configuration, this equipment significantly reduces routine servicing costs and frequency. Its outstanding eco-friendly and energy-efficient characteristics, achieved through structural optimisation and high-efficiency components, substantially lower energy consumption. With a measured noise level of just 64 decibels, it provides users with a quiet and comfortable working environment.
Package Includes
1x Regenerative Blower (As Pics Shown)
