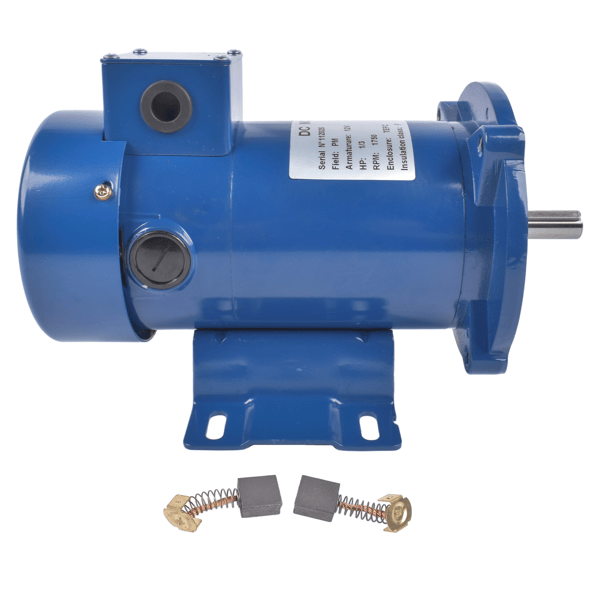

?Specifications
Type: DC Motor
Color: Blue
Material: Iron Shell, Aluminum End Caps, Copper Wire
Frame: 56C
Voltage: 12 V
Current Type: DC
Insulation Class: F
Service Factor: 1.00
Rated Power: 1/3 HP
Rated Speed: 1750 RPM
Reversible/Non-Reversible: Reversible
DC Stator/Winding Type: Permanent Magnet
Enclosure: Totally Enclosed, Fan-Cooled (TEFC)
|
 |
?OEM Part Numbers
MD0503E
MD0503E-C
?Features
- Premium-grade directional magnets;
- Class F insulation standard;
- Equipped with electrical terminal studs for convenient wiring;
- Dual installation versatility with 56C panel and detachable mounting base;
- Dynamically balanced armature for stable, smooth running;
- Fully enclosed fan‑cooled design;
- Double‑sealed ball bearings with permanent lubrication for long service life;
- Extended‑life brushes for improved durability.
?Package Included
1x DC Motor
(As Pics Shown)
|
|
