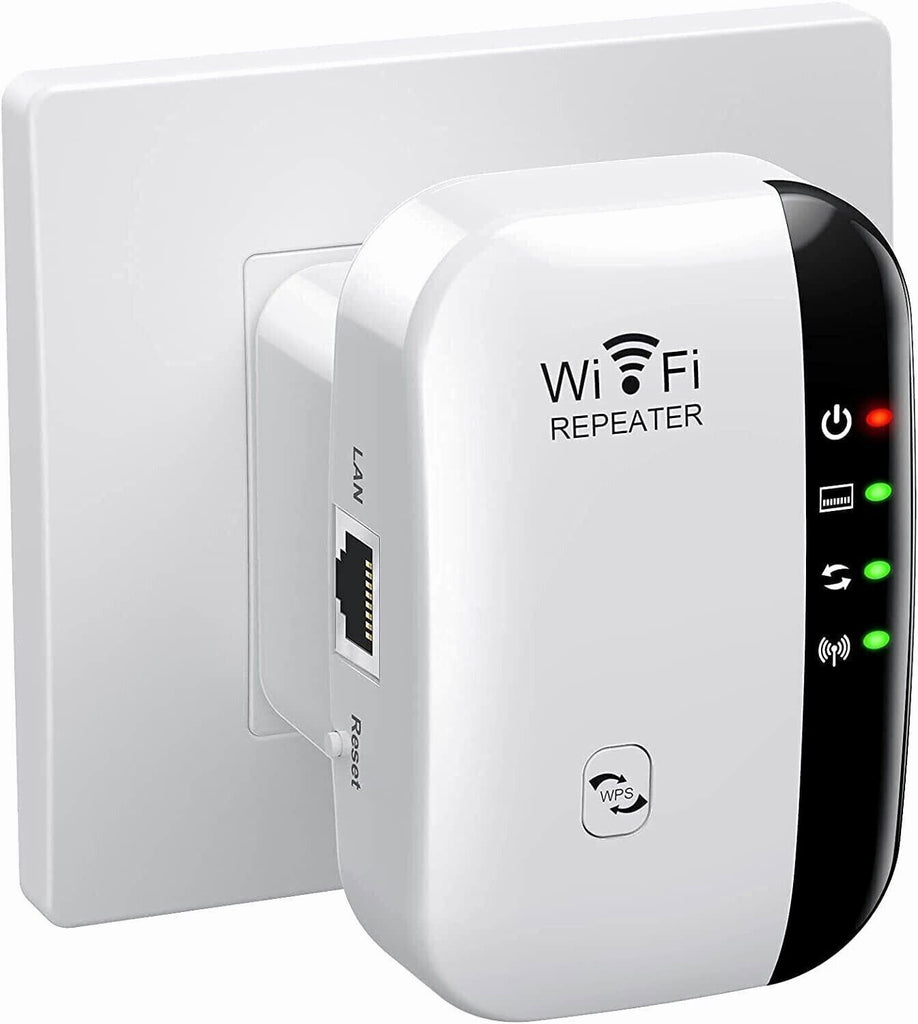

NEW! WiFi Range Extender Internet Booster Wireless Signal Repeater

The Wi-Fi Repeater is a Combined Wired/Wireless Network Connection Device

Latest software wizard for easy setup

Access to Wireless standard 802.11n with Wireless Transmission Speeds of Up to 300Mbps

Easy to Extends the Range of your WIFI Network, No Worry about Obstacles Weakening your WIFI Signal

Also Works Well with Other 11b/g and 11n Protocol Wireless Products

Improves Wireless Coverage in all WLAN Networks

Provides up to 300Mbps Transmission Rates

Downward complies with 802.11g (54Mbit/s) and 802.11b standard (11Mbit/s)

Operating Temperature : 0ºC~40ºC

Storage Temperature: 10~70ºC

Relative Humidity (Operational) :10%~90% , noncondensing

Relative Humidity (Storage) :10%~90% , noncondensing

Support 2.4 GHz WLAN networks

Support Wireless Repeater Mode and Standard AP Mod

Wireless access point or network extender to bring WIFI to your home, study, or office

Antennas integrated

Maximum WLAN security with WPA2, WPA, and WEP (128/64)

Use it to Extend the Range of your WIFI Network Over a Wider Area or Eliminate dead-spots due to low signal power

No Trailing Wires around the place

Distance: Outdoors 300m, Indoor 100m (According to the Actual Environment Change)

1x Wireless WIFI Extender Repeater (US Plug)

1x Installation Manual

1) Plug the Wi-Fi extender into the outlet closest to your router

2) Using an ethernet cable, connect the extender to your router (not modem)

3) Hold down the WPS button for about 5 seconds

4) Go to the Wi-Fi / Network selection at the bottom-right of your screen

5) Connect to the network that says 'WiFi-Repeater'

6) Enter a web browser, then copy and paste the following in the address bar

http://192.168.10.1/

7) Type in 'admin' in all lowercase letters for BOTH username and password

8) This will bring you to a screen with colored boxes, click the box that says 'Repeater Wizard'

9) Select which Wi-Fi network you want to extend the range of, then type in your Wi-Fi password where it says 'Key'

-If you don't know your password, that's fine. Just make up a new one. Once you do it will be the password to your original network, as well as your extension.

10) Click 'Save' and then 'Apply'. Just let the Repeater/Extender restart, and you are good to go!
