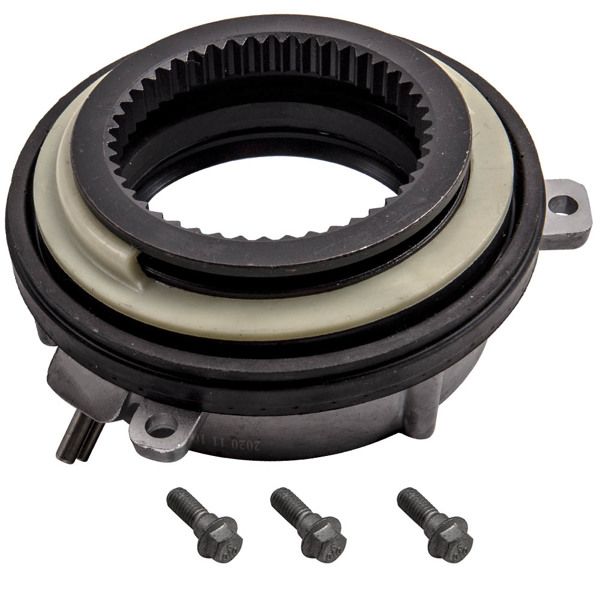

4WD Vacuum Hub Axle Actuator Locking fit Ford F-150 4WD 4X4 Front 2003-2015

This auto-locking hub actuator is just what you need to get your4WDsystem working again!

Description:

The 4WD automatic locking hub is located on the forFord F150 Pickup; for Ford Expedition; for Lincoln Mark LT; or for Lincoln Navigator driver's front wheel hubs. These hubs are connected to the axle and control the way energy is transmitted from the axle to the front wheels of the truck or SUV. If your 4x4 system is not working properly; this may be caused by actuator failure. Our automatic lock hub directly replaces for Ford's right front (passenger's side) and left front (driver's side) actuators. Hundreds of discounts are saved on dealer prices and restored with a new lock hub 4x4 system functions.

Package Included:

1 PCS of Auto-locking Hub Actuator

Fitment:

for Ford Expedition 4WD 2003-2015

for Ford Expedition AWD 2015

for Ford F-150 4WD 2004-2015

for Ford F-150 AWD 2008-2012

for Lincoln Mark LT 4WD 2006-2008

for Lincoln Mark LT AWD 2006-2014

for Lincoln Navigator 4WD 2003-2015

for Lincoln Navigator AWD 2005-2015

Place on Vehicle:Front Left(Driver) or Right (Passenger)Side

Replacement OEM Number:7L1Z-3C247-A / 7L1Z3C247A / 2L1Z3C247AA / 7L1Z3C247B / 1S12254 / 600-105 / SW9320 / 600-3608

Specifications:

Housing Material: Steel

Placement on Vehicles: Front Left(Driver) or Right (Passenger)Side

Type: Locking Hub Actuator; Front Differential Actuator

Feature:

Direct replacement

Built to strict quality control standards

Sealed to prevent water intrusion and to withstand exposure to hard road and weather conditions.

Allows you to replace only the failed hub instead of the entire assembly.

Installation instructions:

STEP 1: REMOVING THE HUB

· Remove the center cap using a pry bar or screwdriver

· Remove the snap ring from the hub

· Pull the hub out

· If the hub is stuck spray it with penetrating oil and let it sit for a while

· Hit it with a rubber mallet from the top and bottom until it loosens and pull it free

STEP 2: INSTALLING A NEW HUB

· Clean the inside of the hub with a wire brush

· If available use compressed air to spray out the debris

· Push the new hub into place

· Use a rubber mallet to help the O-ring seats

· Put the snap ring on

· Replace the center cap

Notice:

* Warranty:1 Year

* Condition: 100% Brand NEW

* Accessories: You will get exactly as shown in the picture above

* For any needs please contact us
