Bolt-On Rear Disc Brake Conversion Kit for 10 & 12 Bolt Chevy Chevelle El Camino Monte Carlo Buick Skylark Oldsmobile Cutlass Pontiac GTO LeMans Tempest Rear

Description:

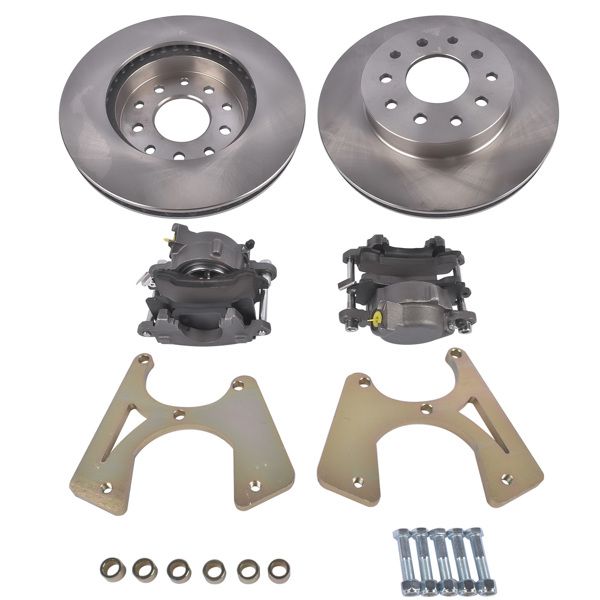

This complete kit includes two bolt-on caliper brackets, two 11-1/4" vented rotors, two GM metric style calipers, brake pads and hardware.

Rotors have both 5 on 4-1/2" and 5 on 4-3/4" bolt circles.

Fits axle with a maximum flange diameter of 6-1/4" O.D.

2.780" Rotor Center Hole

Does not fit all 10 & 12 bolt axles.

With Non-Emergency Brake Calipers

Fit For the Following Models:

This kit will fit 10 & 12 Bolt rear ends from:

1964-1977 Buick Skylark

1964-1973 Chevy Chevelle

1964-1979 Chevy Nova/Chevy II

1964-1977 Chevy El Camino

1967-1969 Camaro

1970-1977 Chevy Monte Carlo

1964-1971 Oldsmobile 442

1964-1977 Oldsmobile Cutlass

1964-1973 Pontiac GTO

1964-1977 Pontiac LeMans

1964-1970 Pontiac Tempest

The housing flange must have:

3-1/8" center-to-center distance for the top two bolt holes

2-11/16" center-to-center distance for the bottom two bolt holes

2-7/16" distance from the center of the top bolt to the center of the bottom bolt

Note: This disc brake kit does NOT fit all 10 & 12 bolt rear axles. It does NOT fit full size car (Biscayne, Bel Air, Impala) or pickup rear axles.

Specifications:

Rotor Shape: Round

Rotor Style: Plain Face

Color: Natural

Notes: Includes rotors, calipers, pads, hardware, and caliper brackets.

Hardware Included: Yes

Parking Brake Provision: No

Position: Rear

Front Caliper Finish: Natural

Rear Rotor Included: Yes

Front Spindles Included: No

Master Cylinder Included: No

Brake Booster Included: No

Front Caliper Included: No

Front Rotor Included: No

Rear Caliper Included: Yes

Rotor Type: Vented

Rotor Material Type: Cast Iron

Brake Hoses Included: No

Finish: Natural

Caliper Finish: Natural
