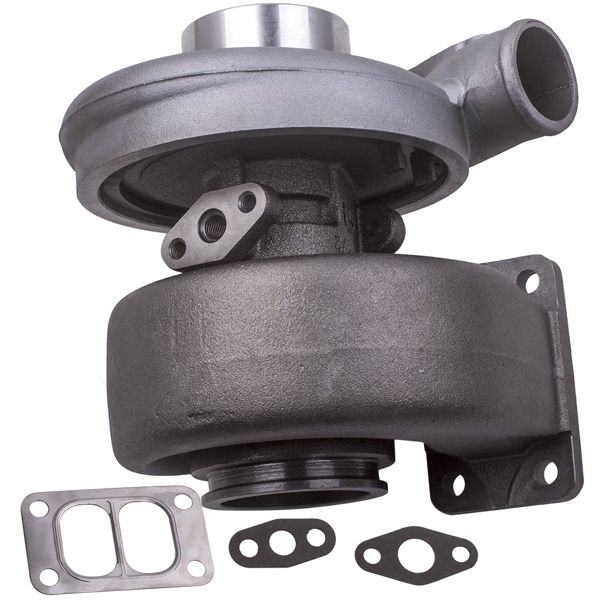

H1C Turbo Charger for Dodge 250 350 Truck Cummins 6BT 5.9L 160HP Diesel 88-90

H1C Turbo for Dodge Cummins 5.9 D 89-90 6BT Turbocharger

Application:

for Cummins 5.9 d 160 bhp 1987-1990 for Chrysler 6BT engine

for Dodge D250:

forBase Standard Cab Pickup 2D 5.9L 1988-1990

for Base Extended Cap Pickup 2D 5.9L 1990

for Dodge D350:

for Base Cab&Chassis 2D 5.9L 1988-1990

for Base Standard Cab Pickup 2D 5.9L 1988-1990

for Dodge W250:

for Base Cab&Chassis 2D 5.9L 1988-1990

for Base Standard Cab Pickup 2D 5.9L 1988-1990

for Base Extended cab Pickup 2D 5.9L 1990

for Dodge W350:

for Base Cab&Chassis 2D 5.9L1988-1990

for Base Standard Cab Pickup 2D 5.9L 1988-1990

Turbo Model:H1C; TA3406; TA3407

Engine:6BT; 6BT-590

Interchange part NO.:

466565-0001; 4665650001 ; 466565-0003; 4665650003

466565 0001; 466565 0003; 466565 5001S; 466565 5003S

466565-1; 466565-3; 466565-5001S; 466565-5003S

3526740 ; 3528771 ; 3526739; 3802302 ; 3528772

4728036 3802146 ; 3802146-8 ;3802147; 3802148

Description:

Compressor:

Trim: 59

A/R: .70

IND: 56.2mm

EXD: 72.9mm

Turbine:

Trim: 62

A/R: .84

IND: 73.9mm

EXD: 58.3mm

Turbine Housing Flange: Standard T3

Air Intake Inlet: 3''

Compressed Air Outlet: 2''

Specification:

Cooling Type: Oil Cooling

Bearing Type: Floating Bearing

Hosepower: Up to 160HP

Condition: Brand New

Warranty: 2 years warranty for any manufacturing defect

Accessories: You will get exactly as shown in the picture above

Feature:

* Turbine housing adopts ductile iron QT450-10; withstand temperatures up to 700℃.

* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.

* Cast aluminium blades with good air tightness and corrosion resistance

* OEM-quality and size with little modification

Note:

*Please check the Turbo Model; Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the right one for your engine. If you are not sure about these information; Please feel free to contact us

*Professional installation is highly recommended (No Instruction Included)

Notice:

California Prop 65 Warning

Code:MXR02FXSY
