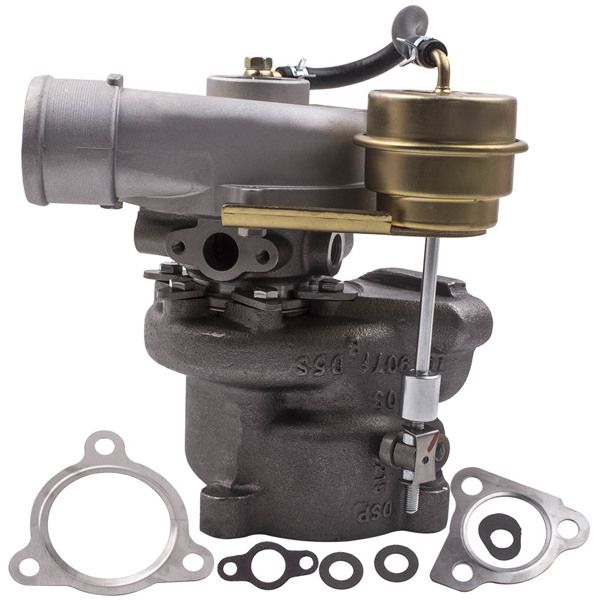

K03 Turbo Turbocharger For VW Passat Audi A4 1.8T 1996 -2004 53039880029

Turbo Model:K03

Applications:

1998-99 for Audi A4 1.8T (B5) Engine Code APU; ARK

2002-05 for Audi A4 1.8T (B6) Engine Code BFB

1998- for Audi A6 1.8T (C5) Engine Code APU; ARK

1996-00 for Volkswagen Passat B5 1.8T Engine Code APU; ARK

2000-05 for Audi A4 with AMG; AWM; ATW; AUG Engine

2000-05 for Volkswagen Passat with AMG; AWM; ATW; AUG Engine

Part Number:

53039880029; 5303-988-0029; 5303 988 0029;

53039700029; 5303-970-0029; 5303 970 0029;

53039880025; 5303-988-0025; 5303 988 0025;

53039700025; 5303-970-0025; 5303 970 0025;

058145703J; 058145703JX; 058145703JV;

058145703K; 058145703KX; 058145703KV;

058145703N; 058145703NX ; 058145703NV;

058145703Q; 058145703QX; 058145703QV

Specification:

Compressor :

Wheel Diameter: 50/36 mm

Trim: 51.8

Compressor Inlet: 44.4mm

Compressor Outlet: 50mm

Blades: 6 x 6 blades

Turbine :

Wheel Diameter: 44/40 mm

Trim: 82.6

Blades: 11 blades

Inlet Flange: 3 Bolt Flange

Outlet Flange: 3 Bolt Flange

===================================

Turbo Model: K03

Engine: APU/ARK/BFB/AMG/AWM/ATW/AUG

Fuel: Gasoline

Cooling Type: Water Oil Cooling

Horsepower Rating: up to 150 HP

Bearing Type: Floating Bearing

Thrust bearings: 270 Degrees

Turbo Type: Individual

Universal Fitment: No

Finish: Matte

Condition: Brand New

Accessories: You will get exactly as shown in the picture above

Package Weight: 5700g

Package Size: 26*25*23cm

Feature:

* Turbine housing adopts ductile iron QT450-10; withstand temperatures up to 700℃.

* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.

* Cast aluminium blades with good air tightness and corrosion resistance

* OEM-quality and size with little modification

Note:

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger; the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply; foreign bodies in the intake area; crankcase ventilation without function; etc.)!

Notice:

California Prop 65 Warning

Code:MXR02FXSY
