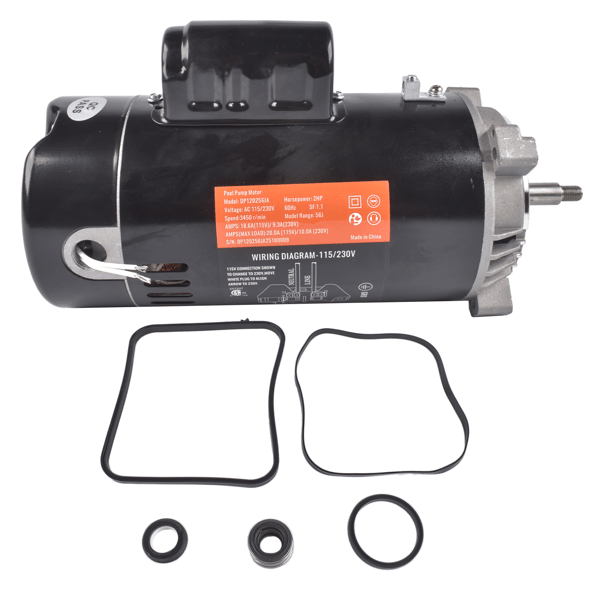

The two horsepower round flange up-rated replacement motor for swimming pool pumps has a threaded shaft and fits most pumps that require a round flange motor. It operates on both 115 and 230-Volts. The UST1202 is compatible with Hayward Super, Super II, and Max-Flow pumps, Jacuzzi Magnum pumps, and Pentair Pinnacle pumps.
OEM Part Numbers:
UST1202
Will Fit for Following Models:
Replacement for Hayward/ Super Pump/ Super II/Northstar and Jacuzzi Magnum Pumps and so on.
Specification:
2 HP
3450 RPM
18.6/9.3 AMPS
115/230V
56J Frame
1.10 Service Factor
Rotation: CCW Pump End
Sealed Ball Bearings
Sealed switch design
1081 Design
50 C Ambient
60 Hertz
303 Stainless Steel Shaft
Installation Instructions:
Ensure the pool motor is compatible with your pool pump.
Turn pump power off during replacement.
Check voltage requirements on your current setup.
Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
Turn on the pump to test for leaks and pump operation.
Please Note: We recommend professional installation.
