OEM Part Number
1848304C3R
59001107387
8C3Z9J559ARM
Fit For the Following Models
Replacement for Ford 6.4L V8 Diesel OHV Twin Turbocharged
Replacement for Ford F250 F350 F450 F550 Super Duty 2008-2010
Attention
Turbo Actuator Calibration Tool:
Operating voltage: 8-28V
According to the actuator supply voltage to determine (Usually 12V or 24V).
Operating temperature: -40~125°.
Human-machine interface: 3 switches, 1 status lamp, 1 display panel.
Calibration method (Holset) :
Condition 1: Actuator had been removed from turbo
Calibration Step: press IP Key-->Assemble the actuator with turbo and then--> press IC Key
Condition 2: Actuator had been calibrated and assembled with turbo
Calibration Step: press IC key
Warning:
Before powering on the calibration box, ensure that the actuator is properly connected to the calibration box.
Any time when Reset key is pressed, make sure Actuator had been removed from turbo, and then IP-->IC.
When IP success(digital tube display IP-S), make sure turbo gear is in the left limitation location and then assemble actuator. If not, calibration cannot success.

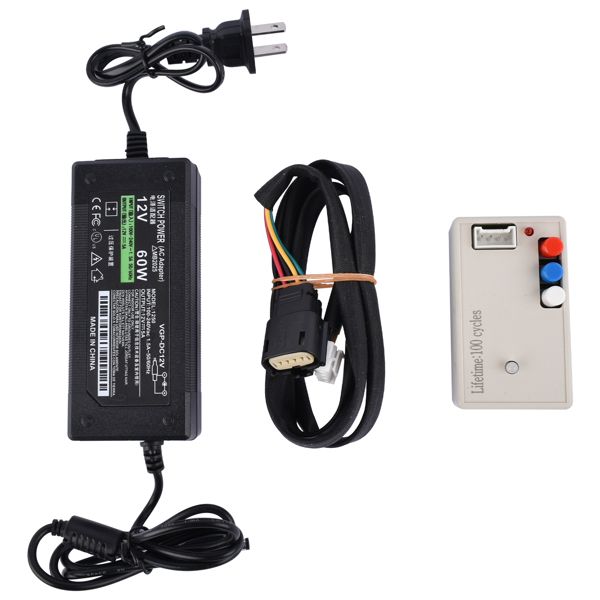

package Included : 1x Turbo Actuator Calibrator Tool Kit
