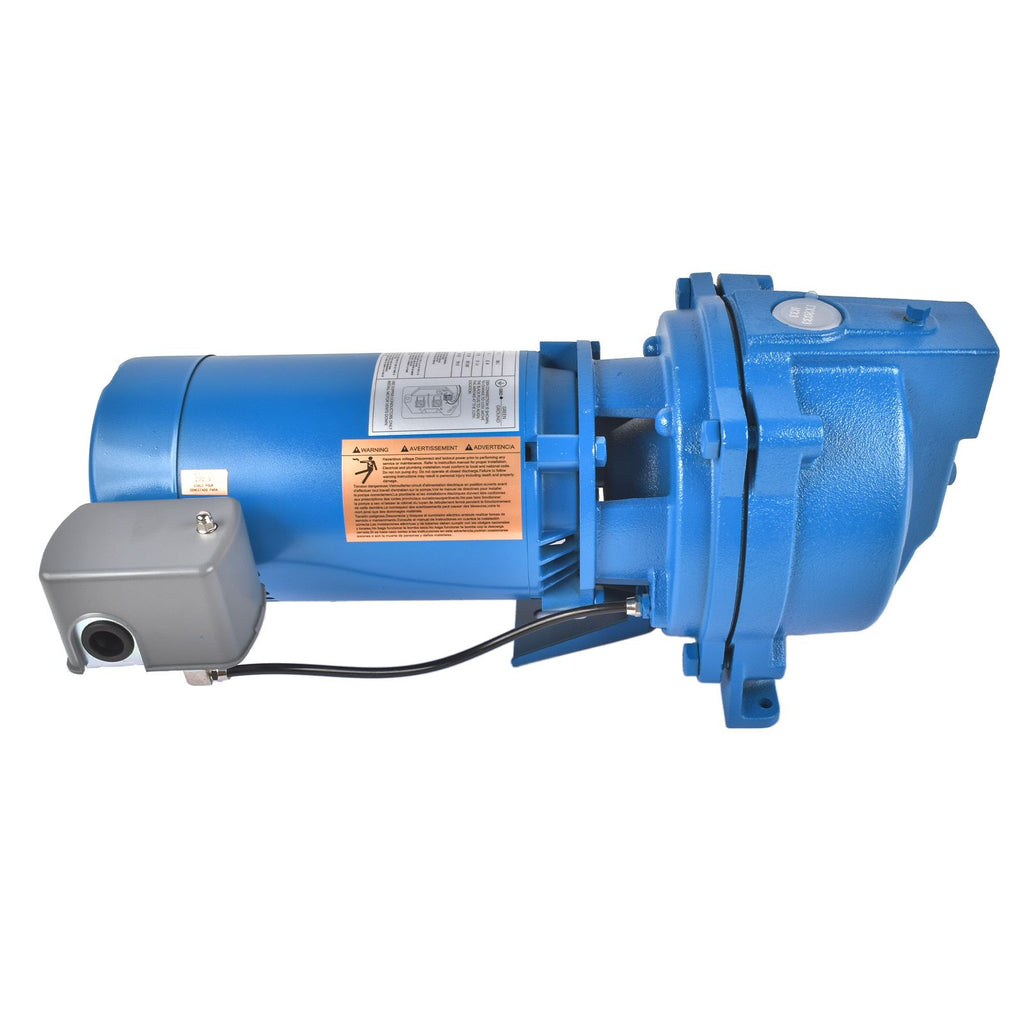

Replacement for J10S 1HP Shallow Well Jet Pump
Compact pump with an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.
Includes
Pump with integral shallow well jet
Nozzle (Part# AN018)
Venturi (Part# AD3339)
Pressure switch (Part# AS4) and tubing
Motor
Features
Back pull-out design allows disassembly of pump for service without disturbing piping
Two compartment motor for easy access to wiring and replaceable components
Nozzle clean out plug in pump case
Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning
Protected mechanical seal with a special diaphragm design that retains water in the casing at all times to ensure the mechanical seal can never run dry
Corrosion and abrasion resistat glass filled noryl impeller, F.D.A. compliant
Bolt down diffuser provides positive alignment with impeller
Diffuser also has stainless wear ring for extended performance in abrasive conditions
Powered for continuous operation
After initial priming the pump has the ability to re-prime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve
Built-in overload with automatic reset
Stainless steel shaft
Clockwise rotation when viewed from motor end
Pressure switch preset (30-50 psi)
Applications
Homes
Cottages
Booster service
Professional installation is recommended.
