Description:
▲POWER&DURABLE AND STABLE: Its power is 6300w, and the speed can reach up to 3600r/min, providing you with strong power to ensure that your work can be completed quickly and easily.Made of aluminum alloy and iron, it is durable, not easy to rust, and has a long service life. The camshaft is made of steel, ensuring stable engine operation and effectively controlling the opening and closing of valves.
▲LOW NOISE&ENERGY SAVER: It adopts a double-layer soundproof muffler, which can effectively reduce noise and provide you with a comfortable and quiet working environment, This product adopts a self-injection diesel system with a good atomization effect and can effectively reduce fuel consumption, and save more costs for you.
▲LONG PERFORMANCE LIFE&ENVIRONMENTAL-FRIENDLY: Compared with the gasoline engine, a diesel engine has a longer performance life with less abrasion of the engine caused by low rotate speed. Compared with a gasoline engine, a diesel engine discharges less harmful gas that will produce less harm to the atmosphere and is beneficial to our environment.
▲EXCELLENT COOLING SYSTEM&EASY TO USE: Equipped with a forced air cooling system and heat dissipation holes, it can timely reduce the temperature of the motor, extend its service life, and reduce safety hazards.This product is equipped with a manual starter, which can be easily started by pulling it backward, and is time-saving.
▲SCOPE OF APPLICATION:This diesel engine is mainly used for garden, farming and transport from forklifts, bulldozers, to harvesters., and it is widely used in pasture management machines, irrigation and drainage machines, generator sets, small transport vehicles, small walking tractors and other small agricultural machinery fields.

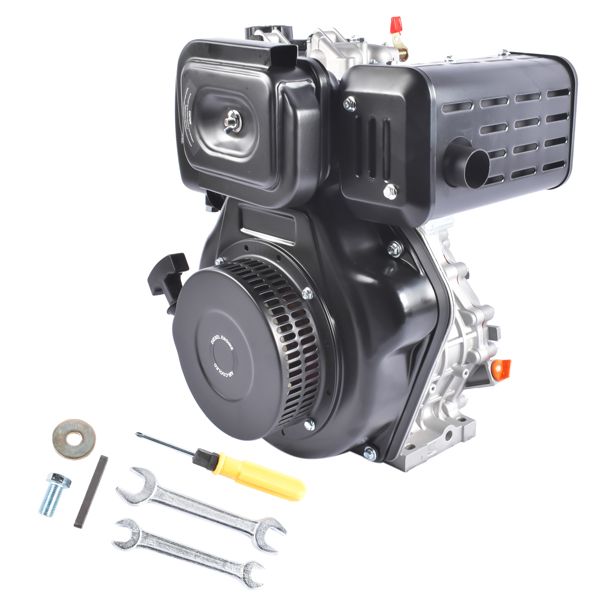

Product Specification:
Model: 186F
Color: Red / Green / Black
Material: Iron, Die-casting Aluminum, Aluminum
Process: Spray Molding
Machine Type: Single-cylinder, Vertical, 4-stroke, Forced Air-cooled
Shaft Type: Recoil Manual Start
Crankshaft: Horizontal
Fuel Type: Diesel
Bolt Pattern: 4 Bolt
Combustion System: Direct Injection
Lubrication Mode: Pressure and Splash Compound Method
Power: 6.3kw, 10hp
Rotation Speed: 3600rpm
Displacement: 418cc
Fuel Tank Capacity: 5.5L/1.45Gal
Lubricating Oil Volume: 1.65L/0.44Gal
Fuel Consumption Rate: ≤280g/Kw. h
Compression Ratio: 19:1
Bore Stroke: 86x72mm/3.39*2.83inch
Shaft Diameter: 25mm/0.98inch
Shaft Length: 72.2mm/2.84inch
Shaft I.D. Thread Size: 7/16-20UFN-2B, 20mm Depth
Gross Weight: 49.85kg/109.9lbs
Net Weight: 41.85kg/92.26lbs
Package Size: 53*48*57.5cm/20.87*18.9*22.64inch
Product Size: 43*41*49cm/ 16.93*16.14*19.29inch
NOTE:
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please use the specified diesel and guarantee the diesel is clean. Please use different lubricating oils for different seasons and keep the oil quantity within the specified range.
3.Please don't run the engine when it exhausts black smoke.
4.When using the air filter, remove the air filter element every 50 hours (if there is much dust, remove it every 10 hours, clean it with clean detergent, blow it dry, and then put it into use).
5.Please allow the slight color difference caused by the shooting chandelier and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
6.Read carefully before operation
①Refill and engine oil in the shutdown state
②Replace the filter every 500 hours
③Change the oil every 100 hours
(CD level or SAE 10W30 in winter/15W40 in summer)
④Clean the oil filter every 100 hours
⑤Check the oil and fuel level before starting
⑥Turn off the fuel switch after shutdown
