Features
100% brand new

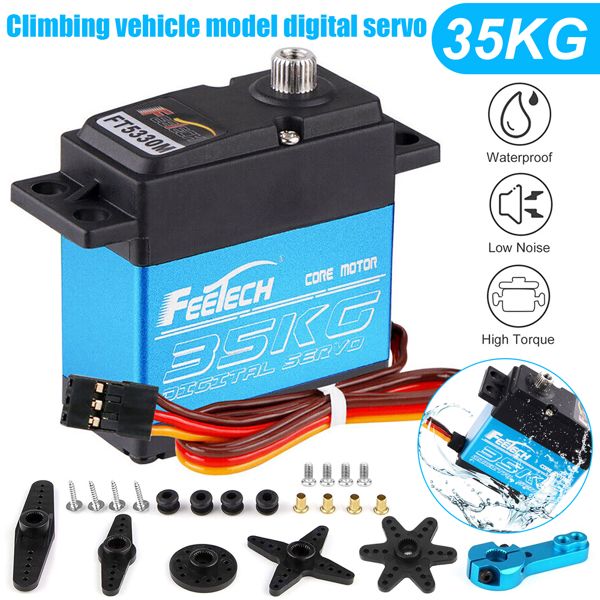

FT5330M servo motor is composed of a sturdy PA aluminum middle shell, a strong steel metal gear, and a hard iron shaft, which provides higher stability and provides longer service life.
Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability, low noise, fast heat dissipation.
180-degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off, durable and reliable, perfect for robot joint activities.
The steering gear has IP54 waterproof performance and ball bearings. The output torque exceeds the overload torque, lasts 8S, or the temperature over 70 ℃, the steering gear will automatically stop the output torque. The overload torque can be modified.
The servo motor system is controlled by pulse, compatible with 1/8 and 1/10 scale RC robots, trucks, off-road vehicles, robotic arms, and any application that uses a standard servo system.
Product Specification
Electrical Specification
Operating voltage 6-7.4V
Operating speed(6V) 0.238sec/60° 42RPM
Operating speed (7.4V) 0.192sec/60° 52RPM
Running current no load ( 6V ) 150mA
Running current no load ( 7.4V ) 180mA
Stall torque ( 6V ) 28.8kg/cm
Stall torque ( 7.4V ) 35.5kg/cm
Stall current at locked ( 6V ) 3.2A
Stall current at locked ( 7.4V ) 3.9A
Rated torgue ( 6V ) 9.5kg.cm
Rated torgue (7.4V ) 11.8kg.cm
Rated current ( 6V ) 1000mA
Rated current ( 7.4V ) 1200mA
Running degree 180° (when 500-2500usec)
Pulse width range 500~2500usec
Rotating direction Counterclockwise
Electronic Protection Stall 8sec
Package Included
1 x FT5330M 35kg Digital Servo
1 x 25T Adjustable metal servo arm
1 x Set of accessories
