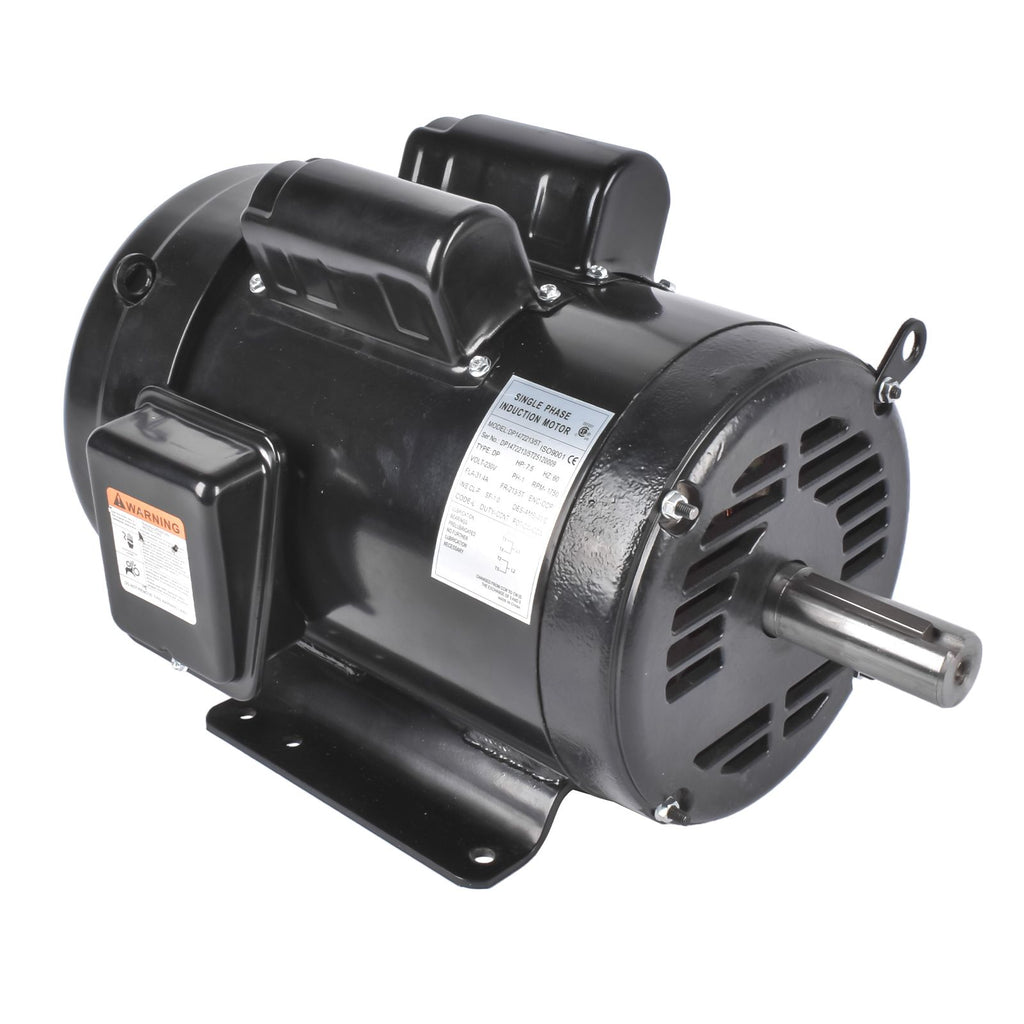

7.5 HP Single Phase Air Compressor Electric Motor 230 Volts 215T Frame 1750 RPM 60 Hz L1510T

Description

7.5 HP single-phase electric motor. This motor is rated for 1750 RPM and can conveniently rotate in either direction. It runs on 230 Volts and is 60 Hz. For mounting, the motor features a 215T frame. With a continuous duty rating.

Specifications

Horsepower: 7.5 HP

Voltage: 230V

AC Phase: Single Phase

Full Load Amps: 31 on 230 volt

RPM: 1750

Frame Size: 215T (This designates the size and bolt pattern of the motor)

Frequency: 60 Hz

Shaft Diameter: 1-3/8"

Model Number: L1510T

Rotation: Reversible (Clockwise/Counterclockwise)

Duty: Continuous, Industrial Grade

Enclosure Type: ODP (Open Drip-Proof)

Mounting Type: Base Mount

Shaft Type: Keyed

Shaft Diameter: 1 3/8 in

Service Factor: 1.15
