OEM Part Number
90150
Application
Commonly found on class 3-8 trucks and equipment.
The 90150 works on straight and tapered king pins from 7/8' to 2 5/32'.

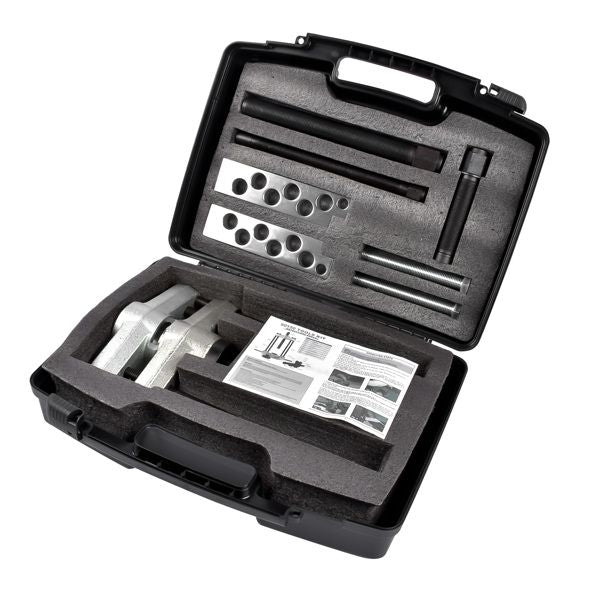

The King Pin Press also works with additional adaptors allowing you to service 2 ¼' straight/tapered king pins
For specialized applications, the King Pin Press (part number 90150) can be paired with an adapter for trucks (part number 90151), or the Clearance Plate Adapter for 2 1/2 inch King Pins (part number 90153).
Please note that the 90150 is not compatible with FL981 axles where the tie rod is cast to the spindle.
Item Features
-Capable of generating 46,000 lbs of force yet weighs only 30 lbs
-Anti-torque arms prevent twisting of the main body while under extreme force
-Engineered for use with up to a 1' impact tool
-Despite its qualified 46,000 lbs of force capability, the King Pin Press maintains a lightweight design at just 30 lbs. Anti-torque arms prevent twisting under extreme force, and optimized diamond-shaped end plates made from high-grade steel reduce the tool's mass without compromising strength, ensuring durability and ease of use.
Package Included
1x Tiger Tool
