Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection image 2

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection image 3

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection image 4

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection image 5

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection image 6

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection image 7

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection image 8

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection image 9

Hydraulic Multiplier Assembly 3 Port 20 GPM 3000 PSI O-Ring Boss NPT Connection

$509.49 $764.10

Ask about this product

DESCRIPTION

◾ TECHNICAL DATA ◾
Part Name: Manual Hydraulic Multiplier
Color: Multicolor
Material: Iron
Number of Ports: 3
Operation Mode: Manual
Outlet Connection Type: NPT
Inlet Connection Size: 0.75 Inches
Inlet Connection Type: O-Ring Boss
Outlet Connection Size: 0.75 Inches
Threaded Ports: 3/4-16 ORB (-08)
Max Operating Pressure: 3000 PSI
Flow Rating: 20 GPM
Supplied With: Manual hydraulic multiplier valve, couplers, adapter fittings

◾ PRODUCT FEATURES ◾
▸ Multi-functional hydraulic expansion module: Expands original hydraulic interfaces, delivers precise dual-circuit control, and enhances the application range of hydraulic setups.

▸ Rapid circuit transition: Specialized handle design enables effortless switching; a 45° rotation provides smooth shifting between Circuit 1 and Circuit 2 for improved usability.

▸ High-flow, high-pressure capability: Rated for 20 GPM flow and 3000 PSI maximum pressure, guaranteeing stable, unobstructed performance under heavy-duty use.

▸ Extensive system compatibility: Suitable for single and double-acting cylinders, compatible with open, closed, and FPC hydraulic systems. Includes adjustable fittings for direct tractor SCV port mounting, with standard 3/4-16 ORB (-08) threaded ports.

▸ Simplified, quick installation: Direct plug-in to tractor rear remote ports via custom offset fittings with 2'–2.5' adjustable center distance. Intuitive joystick for independent or simultaneous dual-circuit operation.

◾ PACKAGE CONTENTS ◾

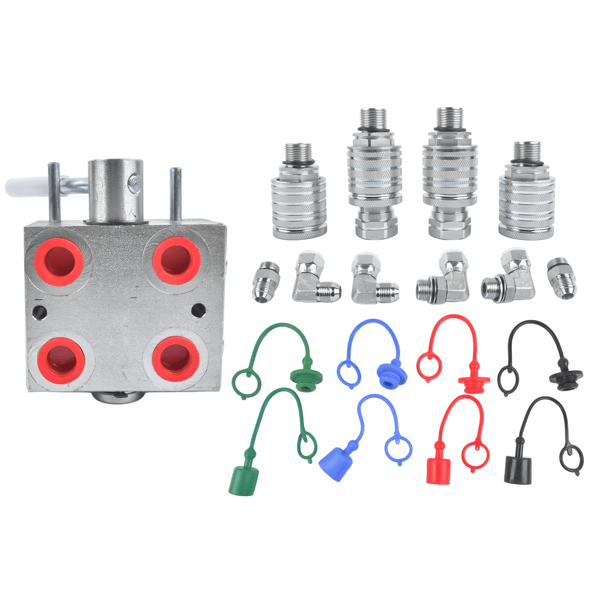

1 × Manual Hydraulic Multiplier Complete Kit (As Shown In Images)
