IP65 Digital Pressure Gauge 4-unit Display 0.2% Accuracy Replacement for Mining Construction

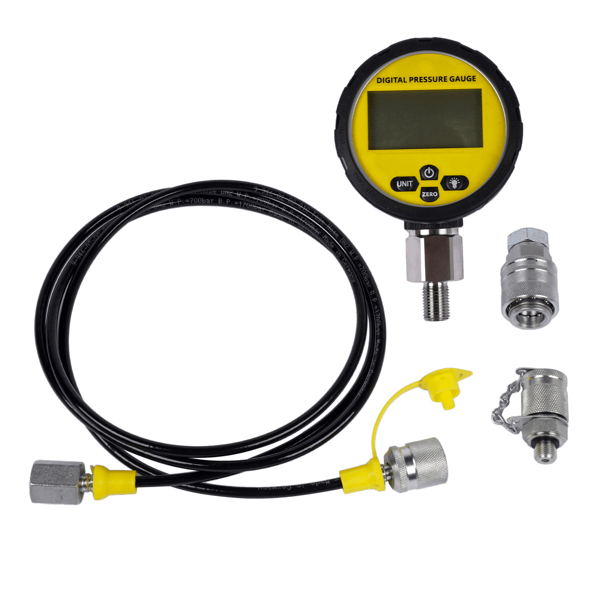

This kit is an essential tool for pressure measurement, equipment support, calibration, and similar applications. Featuring precise connections, flexible usage, simple operation, and convenient setup, it delivers reliable performance and safety, making it your optimal choice. The gauge features a yellow faceplate, with a hose length of 5.2 feet (1.6 m). One end has an M16*2 thread, while the other end has a 1/4-inch NPT thread.

?[Basic Info.]

Performance Metrics Specifications Pressure Range 0-700BAR / 10000PSI / 70MPa Connection Type NPT 1/4" Male Display Units Bar, PSI, MPa, Kgf/cm² Overload Capacity <10MPa: 150%; >10MPa: 120% Measurement Accuracy 0.2%FS (20-25℃); 0.4%FS (-10-50℃) Long-term Stability 0.2%FS/year Input Voltage 3V (2×1.5V AAA Batteries) Sampling Rate 3 Times/Second

?[Material & Structure]

• Main Materials: Steel, Acrylic, Polyurethane
• Connector & Shell Material: 304 Stainless Steel
• Protection Class: IP65
• Screen: 4-digit LCD Display
• Dimensions: 80mm (3.15in) × 46mm (1.81in) × 125mm (4.92in)
• Test Hose Length: 5.2FT (1.6m)
• Core Functions: On/off, Zero Clearing, Unit Conversion, Backlight

?[Compatibility & Application]

1. Model Fit: Specialized replacement part for excavators
2. Broad Compatibility: Works with excavators and construction machinery of most American brands
3. Industry Scope: Applicable to construction, machinery, shipping, chemical, mining, petroleum industries
4. Measuring Media: Gases, liquids, oils and other non-corrosive media (stainless steel compatible)

?[Package Contents]
